AAC Product

AAC Blocks is manufactured in a factory setting using advanced international equipment and technology, and offers customized products such as soundproof and noise-resistant blocks, water-resistant blocks, and plain panels.

AAC Block Product specifications

Autoclaved aerated concrete blocks (sand)
Specification L×B×H	grade	average value	Average dry density (kg/m³)
600×200×250	B04A2.5	≥2.5	≤450
600×240×250	B04A2.5	≥2.5	≤450
600×250×250	B04A2.5	≥2.5	≤450
600×300×250	B04A2.5	≥2.5	≤450
Autoclaved aerated concrete blocks (sand)
Specification L×B×H	grade	average value	Average dry density (kg/m³)
600×30×250	B04A2.5	≥2.5	≤450
600×40×250	B04A2.5	≥2.5	≤450
600×50×250	B04A2.5	≥2.5	≤450
Autoclaved aerated concrete blocks (sand)
Specification L×B×H	grade	average value	Average dry density (kg/m³)
600×100×250	B05A3.5	≥3.6	≤550
600×120×250	B05A3.5	≥3.6	≤550
600×150×250	B05A3.5	≥3.6	≤550
600×200×250	B05A3.5	≥3.6	≤550
600×240×250	B05A3.5	≥3.6	≤550
600×250×250	B05A3.5	≥3.6	≤550
Autoclaved aerated concrete blocks (sand)
Specification L×B×H	grade	average value	Average dry density (kg/m³)
600×100×250	B06A5.0	≥5.1	≤650
600×120×250	B06A5.0	≥5.1	≤650
600×150×250	B06A5.0	≥5.1	≤650
600×200×250	B06A5.0	≥5.1	≤650
600×240×250	B06A5.0	≥5.1	≤650
600×250×250	B06A5.0	≥5.1	≤650

Product packaging

Finished product stacking

Carry the fork

Containerization

Protective air bag

Panel

The AAC Panel is produced using advanced international equipment and technology, combined with specialized reinforcement in a factory setting. It features a series of excellent properties, including lightweight, thermal insulation, fire resistance, and prefabricated modular installation.

AAC Panel(exterior wall panel) Product specifications

AAC Panel(exterior wall panel)
Specification L×B×H	grade	Compressive strength(MPa)	Average dry density (kg/m³)
≤3500×600×100	B05/B06	≥3.5/≥5.0	≤550/≤650
≤4370×600×125	B05/B06	≥3.5/≥5.0	≤550/≤650
≤5250×600×150	B05/B06	≥3.5/≥5.0	≤550/≤650
≤6000×600×175	B05/B06	≥3.5/≥5.0	≤550/≤650
≤6000×600×200	B05/B06	≥3.5/≥5.0	≤550/≤650
AAC Panel(interior wall panel)
Specification L×B×H	grade	Compressive strength(MPa)	Average dry density (kg/m³)
≤4000×600×100	B05/B06	≥3.5/≥5.0	≤550/≤650
≤4800×600×120	B05/B06	≥3.5/≥5.0	≤550/≤650
≤5000×600×125	B05/B06	≥3.5/≥5.0	≤550/≤650
≤6000×600×150	B05/B06	≥3.5/≥5.0	≤550/≤650
≤6000×600×175	B05/B06	≥3.5/≥5.0	≤550/≤650
≤6000×600×200	B05/B06	≥3.5/≥5.0	≤550/≤650
≤6000×600×240	B05/B06	≥3.5/≥5.0	≤550/≤650
≤6000×600×250	B05/B06	≥3.5/≥5.0	≤550/≤650
AAC Panel(floor)
Specification L×B×H	grade	Compressive strength(MPa)	Average dry density (kg/m³)
≤2100×600×100	B05	≥3.5	≥525
≤2700×600×125	B05	≥3.5	≥525
≤3400×600×150	B05	≥3.5	≥525
≤4500×600×200	B05	≥3.5	≥525
≤5700×600×250	B05	≥3.5	≥525
≤6000×600×300	B05	≥3.5	≥525
AAC Panel(Super thin panel）
Specification L×B×H	grade	Compressive strength(MPa)	Average dry density (kg/m³)
≤1870×600×75	B06	≥5.0	≤650
≤2500×600×100	B06	≥5.0	≤650
≤3120×600×125	B06	≥5.0	≤650
≤3750×600×150	B06	≥5.0	≤650
≤5000×600×200	B06	≥5.0	≤650
≤6000×600×250	B06	≥5.0	≤650
AAC Panel(lintel)
Specification L×B×H	grade	Compressive strength(MPa)	Average dry density (kg/m³)
≤3000×250×200/250	B06	≥5.0	≤650
≤3000×240×200/250	B06	≥5.0	≤650
≤3000×200×200/250	B06	≥5.0	≤650
≤3000×150×200/250	B06	≥5.0	≤650
≤3000×120×200/250	B06	≥5.0	≤650
≤3000×100×200/250	B06	≥5.0	≤650

UBlok panel partition system

Suitable for interior partition walls, it allows for flexible and customizable division of indoor spaces. Under the same requirements for sound insulation and fire resistance, the wall thickness is thinner, which effectively increases the usable area of the building.

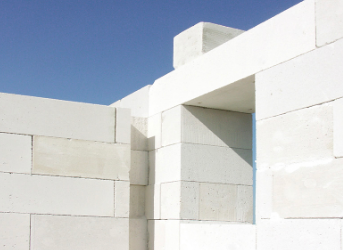

UBlok block wall system

High-precision blocks, utilizing dry construction methods and either no plastering or thin plastering, offer high surface flatness, require no curing, shorten the construction period, and significantly reduce material and labor costs.

UBlok decoration system

The AAC panels have strong plasticity. Their surfaces can be carved with various patterns, and they can also be customized with personalized designs according to specific needs, offering excellent facade effects.

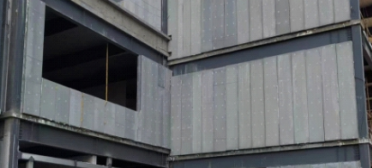

UBlok panel fabricated exterior wall system

The UBlok wall panels have excellent thermal insulation properties. When used for the exterior envelope walls of buildings, they significantly reduce heat loss through thermal bridges and ensure a comfortable indoor environment. The panels are reinforced with steel bars, providing high strength and the ability to withstand significant wind loads, as well as excellent impact resistance. Using sand-lime aerated concrete panels eliminates the need for ring beams and structural columns, reducing the wall load and simplifying construction procedures.

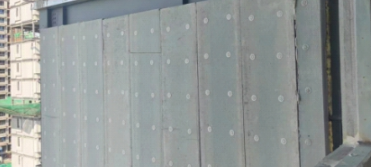

Concrete exterior wall

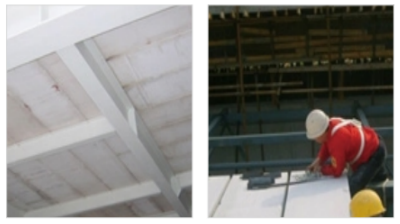

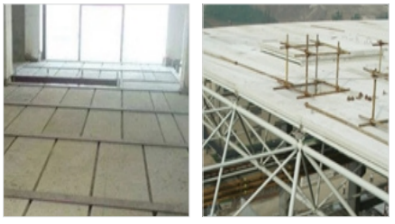

UBlok roofing and floor systems

UBlok AAC panels, when used as floor and roof panels, are widely applied in villas, LOFT apartments, and office spaces. The thickness of the panels can be specifically configured according to the requirements of different buildings and varying load demands, ensuring safe load-bearing capacity and suitable performance.

floor panel

Roof panel

System Solution

Plate type

Exterior wall panel

Interior wall panel

Roof panel

Floor panel
